Portable Truck Scales
Ultra Low Profile weigh pad scales
40,000 lb per pad / 80,000lb per axle (less than 3/4" high), wide
enough to accommodate double tires
(Perfect for Environmental & Demolition waste removal applications)
also often used by Fire Departments, EMS and Vehicle Mfrs.


| Capacity |
| 20,000 lb or 40,000 lb per pad |
|
| Graduation value |
20 lb. (standard), other resolutions
possible |
| Overall dimensions |

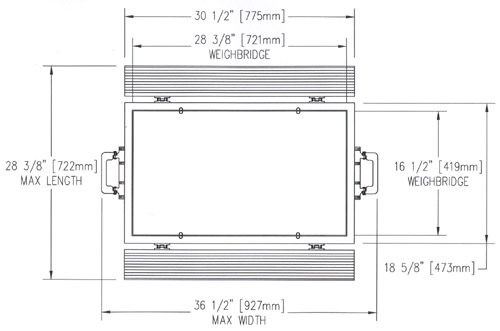

See sketch |
| Active weighing surface |
28.4" width x 16.5" length
(in traffic direction) |
| Weight |
52 lb. (with ramps), 42 lb. (pad
only) |
| Temperature range |
-20°C to 60°C |
| Ground requirement |
Concrete or asphalt surface
preferred |
Choice of Two different displays

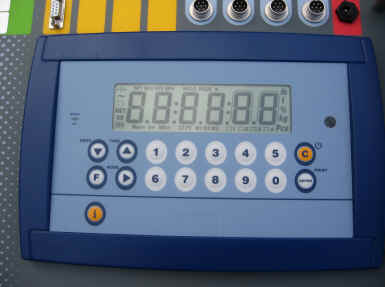

Model AX-5 or FWI-100 weight indicator
|
|
|

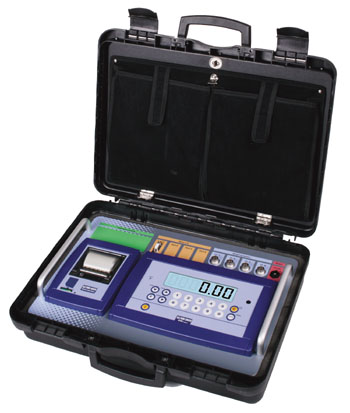

Model AX-5 weight indicator in portable case
shown with optional built-in printer

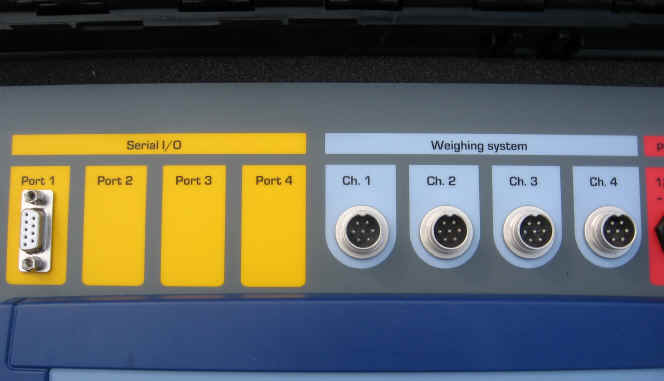

All the scale pads connect to one display.
Displays in Lbs & Kgs, RS232 printer/computer output
Internal rechargeable battery (12 hour continuous use battery life, 8 hour
recharge).
In WHEEL WEIGHING mode with the total function it is possible to
print/display:
The weight of the single platforms, sum of any of their combinations,
total weight of all the platforms
The number of weighments performed, the accumulated weight and the sum of
the subtotals carried out.
Prints the center of gravity coordinates.
|

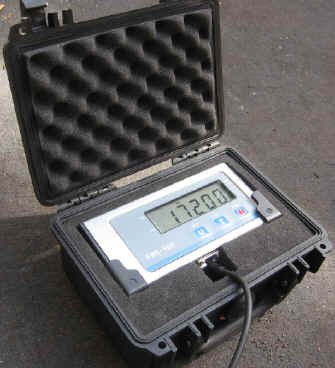

FWI-100 display in waterproof case
(pictured below)
|
|
|
Model FWI-100 weight indicator in portable case
(One FWI-100 display per scale)
Front panel keys: ON/OFF, ZERO, UNITS
Weighs in lbs and kgs. Powered by (4) AAA
batteries (included).
RS232 printer/computer output. Waterproof case included
|
Prices
include either
the AX-5 or FWI-100 weight indicator
| Model |
Capacity |
With FWI-100
|
With AX-5
|
Ultra
Low profile- 40K-20
(Set
of 2 scales) |
40,000
lb x 20 lb increments
(2) 20,000 lb capacity scales
One axle at a time |
$2995
|
$3350
|
Ultra
Low profile-80K-20
(Set of 4 scales) |
80,000
lb x 20 lb increments
(4) 20,000 lb capacity scales
Two axles at a time
|
$5695
|
$5995 |
Ultra Low profile-120K-20
(Set of 6 scales) |
120,000 lb x 20 lb increments
(6) 20,000 lb capacity scales
Three axles at a time |
$8545
|
$8995 |
| |
|
|
|
Ultra
Low profile- 80K
(set
of 2 scales) |
80,000
lb x 20 lb increments
(2) 40,000lb capacity scales
One axle at a time |
$2995 |
$3350 |
Ultra
Low profile - 160K
(set
of 4 scales) |
160,000
lb x 20 lb increments
(4) 40,000lb capacity scales
Two axles at a time |
$5695 |
$5995 |
Ultra
Low profile-240
(Set of 6 scales) |
240,000
lb x 20 lb increments
(6) 40,000lb capacity scales
Three axles at a time |
$8545 |
$8995 |
| |
|
|
|
| Options |
|
|
|
Built-in
roll tape printer with
time & date for AX-5 |
|
|
$450
|

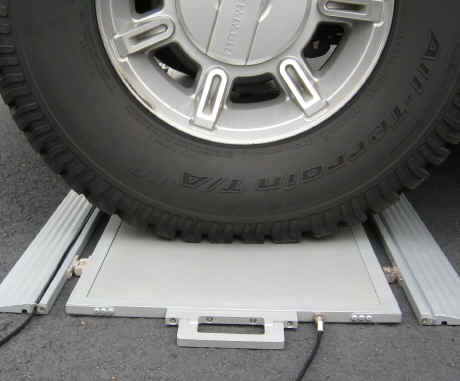

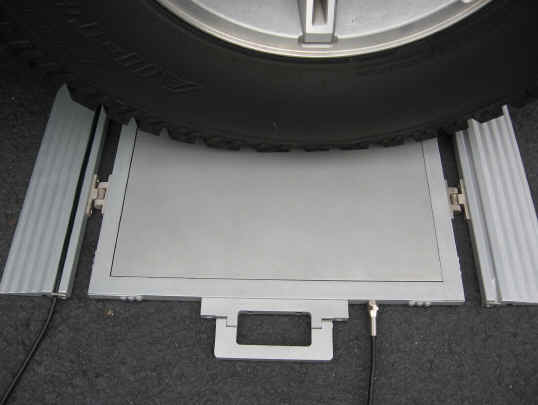

Close up of Ultra low profile axle scale
Click
here for more photos
|
