Model
5223
Double-Ended Link Beam
|
|
| Features |
|
 | Capacity range of 50,000 to
200,000 pounds
| Nickel plated alloy steel
| Hermetically sealed
| Conduit adapter standard
| Operational temperature range
from -65ºF to 200ºF
| Factory Mutual approved for
intrinsic safety
| | | | | |
|
| Exceeds NEMA6 and IP67
standards for washdown resistance
| 3 year warranty
| Certified to OIML R60, Class C,
3000d
| NTEP Class IIIL, 10,000d
| Weighing assemblies available |
| | | |
|
| Applications |
EZ Mount II
|
|
Truck scales
|
Rail Road
Scales
|
Process
weighing
|
| |
|
|

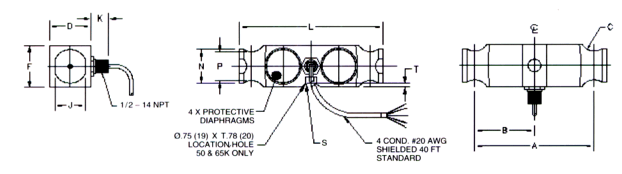

Dimensions
|
 |
| Capacity |
A |
B |
Cr |
D |
F |
J |
K |
L |
N |
P |
Sr |
T |
| 50K, 65K,
100K, 125K |
8.50 |
4.25 |
1.00 |
3.00 |
3.00 |
2.20 |
1.03 |
10.25 |
2.40 |
2.06 |
1.00 |
0.28 |
| 200K |
10.00 |
5.00 |
1.50 |
3.40 |
3.40 |
2.50 |
1.03 |
12.00 |
2.75 |
2.35 |
1.50 |
0.40 |
|
|
|
Specifications
|
| Model |
5223 |
| Capacities
(lbs) |
50K, 65K, 100K, 125K, 200K |
| Accuracy
Class: |
IIIL |
| Maximum
Divisions: |
10,000 |
| Minimum
Division: |
0.0043 |
| Excitation
(VDC or VAC): |
10 Nom. 15 Max. |
| Rated
Output (mV/V): |
3 ± 0.003 |
| Zero
Balance (% FS): |
1.0 |
Resistance:
Input (ohms):
Output (ohms): |
700 ± 7
700 ± 7 |
| Combined
Error (%FS)²: |
0.02 |
| Non-Repeatability
(%FS): |
0.01 |
| Creep (%
Ld / time, -10ºC to 40ºC): |
0.05 / 1 hr. |
| Temp.
Effect: Output {% Ld / 10ºF (% Ld / 5ºC)}: |
0.008 (0.0072) |
| Zero {%
FS / 10ºF (% FS / 5ºC)}: |
0.010 (0.009) |
| Temp.
Range: Compensated {ºF(ºC)}: |
14ºF to 104ºF (-10ºC to
40ºC) |
| Operating
{ºF (ºC)}: |
-65ºF to 200ºF (-50º to
90ºC) |
| Safe
Overload (%FS): |
150 |
| Ultimate
Overload (%FS): |
300 |
| Safe
Sideload (% FS): |
100 |
|
| Beam
only |
| Part
Number |
Capacity |
Weight |
Price |
| 5223-B10-50K-40P1 |
50,000 lb |
16 lb |
|
| 5223-B10-65K-40P1 |
65,000 lb |
16 lb |
|
| 5223-B10-100K-40P1 |
100,000 lb |
16 lb |
|
| 5223-B10-125K-40P1 |
125,000 lb |
16 lb |
|
| 5223-B10-200K-40P1 |
200,000 lb |
32 lb |
|
| EZ
Mount II |
| EZ Mount II for 5223 |
50K - 65K |
148 lb |
|
| EZ Mount II for 5223 |
100,000 lb |
148 lb |
|
| EZ Mount II for 5223 |
200,000 lb |
715 lb |
|
|
