T500E vehicle scale system

(shown with optional ramps)
(photos not to scale)
Includes the following:
* Available with 18" x 18" or 30" x 24" size
platforms
* Available in 5000 lb, 6000lb or 10,000lb capacity per pad
* Each platform comes with a T500E digital display with RS232 computer/printer
output (available electric or battery powered)
* Each platform is calibrated in 1 lb or 2lb increments (10,000lb capacity is by
2lb)
* Each scale platform uses (4) 2,500 lb load cells or (4) 5,000lb load cells
(10K capacity).
* 15 feet of cable from platform to display (longer or shorter lengths
available)
* Optional CPU upgrade (scales connect
to one display) See below.
* Custom sizes are no problem
| Model |
System Capacity |
Capacity per pad |
Weight |
Price |
T500E-5K-3 pads
(18" x 18" steel pads) |
15,000 lb total |
5000 lb x 1 lb each |
75 lbs each |
$2995 |
T500E-5K-4 pads
( |
20,000 lb total |
5000 lb x 1 lb each |
75 lbs each |
$3995 |
| |
|
|
|
|
T500E-6K-3 pads
( |
18,000 lb total |
6000 lb x 1 lb each |
75 lbs each |
$3195 |
T500E-6K-4 pads
( |
24,000 lb total |
6000 lb x 1 lb each |
75 lbs each |
$4195 |
| |
|
|
|
|
T500E-10K-3 pads
( |
30,000 lb total |
10,000 lb x 2 lb each |
80 lbs each |
$3395 |
T500E-10K-4 pads
( |
40,000 lb total |
10.000 lb x 2 lb each |
80 lbs each |
$4395 |
| |
|
|
|
|
| 30" x 24" Pads |
|
|
|
|
T500E-5K-3 pads
(30" x 24" steel pads) |
15,000 lb total |
5000 lb x 1 lb each |
100 lbs each |
$3595 |
T500E-5K-4 pads
|
20,000 lb total |
5000 lb x 1 lb each |
100 lbs each |
$3695 |
| |
|
|
|
|
T500E-6K-3 pads
|
18,000 lb total |
6000 lb x 1 lb each |
100 lbs each |
$3795 |
T500E-6K-4 pads
|
24,000 lb total |
6000 lb x 1 lb each |
100 lbs each |
$4795 |
| |
|
|
|
|
T500E-10K-3 pads
|
30,000 lb total |
10,000 lb x 2 lb each |
100 lbs each |
$3995 |
T500E-10K-4 pads
|
40,000 lb total |
10.000 lb x 2 lb each |
100 lbs each |
$4995 |
| Options |
|
|
|
|
| Ramp 18" x 18" up to 6000lb |
|
|
|
$140 each |
| Ramp 18" x 18" up to 10,000lb |
|
|
|
$165 each |
| Ramp 24" x 24" up to 10,000lb |
|
|
|
$246 each |
| |
|
|
|
|
| CPU upgrade |
One display for all pads |
|
displays individual & total weights |
$250 adder |

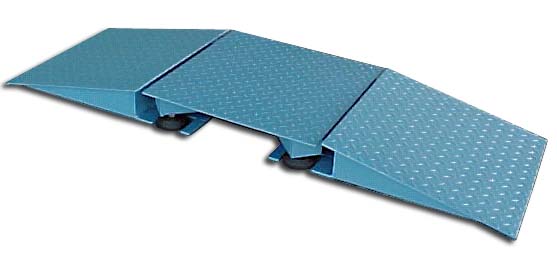

Shown with optional ramps
CPU Upgrade
Displays individual weights & Total weight
These products are not
designed for use in medical, life-saving or life-sustaining applications.
Customers using or selling these products for use in such applications do so at
their own risk and agree to fully indemnify Nationwide Scale LLC for any damages
resulting from such improper use or sale.
|
