Revere Transducers

Please click on the photo of the
Revere load cell you are interested in

Revere HPS and HPSM stainless steel load cell
Single point load cell. 0.03% nonlinearity, 390 input/ 350 ohms output, 10 ft 4 conductor cable, stainless steel construction for harsh environment.	Click here for Pricing

Revere 5123 & 9123 load cell
Shear beam load cell. Interchangeable with Sensortronics Model 65023. 3mv/v, 0.03% nonlinearity, 350/350 ohm, 20 ft 4 conduit cable, nickel plated or stainless steel.	Click here for Pricing

Revere 9523 Hermetically sealed load cell
Stainless Steel Shear beam load cell. Interchangeable with Sensortronics Model 65083. 3mv/v, 0.03% nonlinearity, 350/350 ohm, 20 ft 4 conduit cable, stainless steel.	Click here for Pricing

Revere 363 & 9363 load cell
Bi-directional for both tension & compression loads 3 mv/v, 0.03% nonlinearity, 380/350, 20 ft 4 cond cable, nickel plated steel. NTEP 93-015 & 93-028 S/M 3,000 div & IIIL 10,000 div Capacity: 25, 50, 75, 100, 150, 200, 300, 750, 1K, 1.5K, 2K, 2.5K, 3K, 5K, 10K, 15K, 20K, 30K, 40K lbs	Click here for Pricing

Revere CP1 & CSP1 load cell

Industrial quality heavy duty construction, load cells will perform well under extreme enviromental conditions. These are top of the line with welded, hermetically sealed cases that contain the strain gages. They should be used as replacement cells for weighing applications that demand the highest degree of reliability such as Truck, Track, Hopper and Tank Scales. Capacities: 10,000 - 25,000 - 50,000 - 100,000 - 200,000 - 300,000 - 500,000 lbs

Click here for Pricing

Revere 792 load cell
Interchangeable with BLH Model C2P1. 2 mV/V, 0.025% combined error, 350/350 ohm, 35 ft 4 cond cable, painted steel. Factory Mutual Approved. NTEP 91-001 M IIIL 10,000 div. Capacities: 50K, 100K, 200K lbs.	Click here for Pricing

Revere 92 & 93 load cell
Interchangeable with BLH Model C2P1. 2 mV/V & C3P1 3mV/v, 0.05% nonlinearity, 350/350 ohm, 10 ft 4 cond cable, painted steel. Capacities: 5K, 10K, 20K, 25K, 50K, 100K, 150K, 200K	Click here for Pricing

Revere 5223 truck load cell
3 mV/V, 0.03% nonlinearity, 700 / 700 ohm, 40 ft 4 cond cable, hermetically sealed, nickel plated steel. Capacities: 50K, 65K, 100K, 125K, 200K	Click here for Pricing

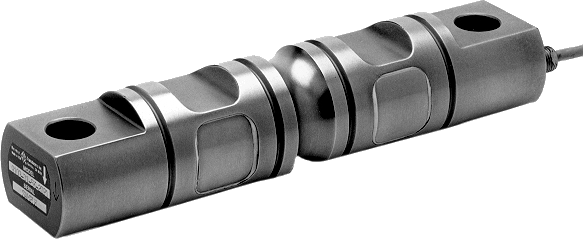

Model 5103 / 9103 Double Link Beam Load Cell

The 5103/9103 are double ended, center loaded shear beam type load cells. The 5103 is nickel plated alloy steel while the 9103 is stainless steel.

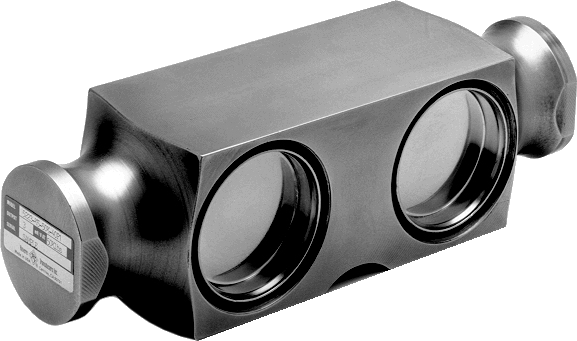

Model 5223 Double Link Beam Load Cell

The 5223 is a hermetically sealed, end loaded, center supported double ended shear beam.

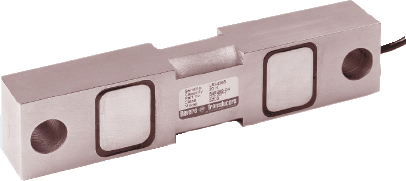

Model 5203 Double Ended Beam Load Cell

The 5203 is a Double Ended Shear Beam type load cell.

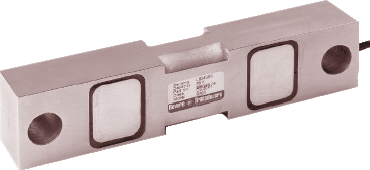

Model 9203 Double Ended Beam Load Cell

The 9203 is a stainless steel Double Ended Shear Beam type load cell.

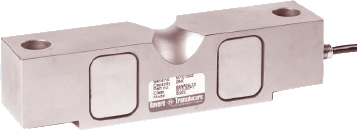

Model 5303 Double Ended Beam Load Cell

The 5303 is a link loaded Double Ended Shear Beam type load cell, specifically designed for truck scales, track scales and high capacity weighing applications.

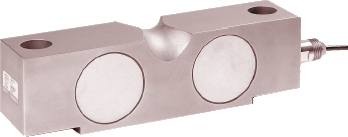

Model 9303 Double Ended Beam Load Cell

The 9303 is a link loaded Double Ended Shear Beam type load cell, specifically designed for truck scales, track scales and high capacity weighing applications.

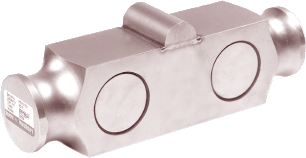

Model 9323 Double Ended Beam Load Cell

The 9323 is a Double Ended Beam type load cell. A reliable sealing and mechanical protection of the strain gauge area is ensured by the use of potting compound with a metal cover.

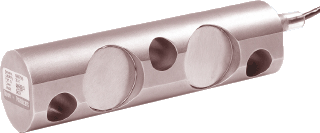

Model 9403 Double Ended Beam Load Cell

The 9403 is a Double Ended Beam type load cell with a low profile design, specifically designed for low capacity small platforms and applications where space is limited or special mounting required.

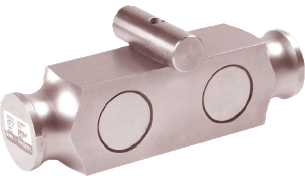

Model 9423 Double Ended Beam Load Cell

The 9423 is a Double Ended Beam type load cell. A reliable sealing and mechanical protection of the strain gauge are is ensured by the use of potting compound with a metal cover.

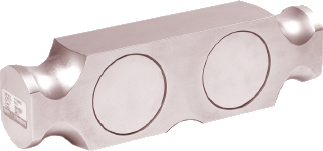

Model 9803 Double Ended Beam Load Cell

The 9803 is a Double Ended Beam type load cell. A reliable sealing and mechanical protection of the strain gauge area is ensured by the use of potting compound with a metal cover.

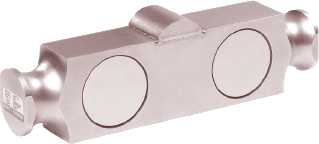

Model 9903 Double Ended Beam Load Cell

The 9903 is a Double Ended Beam type load cell with a low profile design, specifically designed for applications where space is limited or special mounting required.

Please feel free to call if the Revere Transducer load cell you are looking for is not listed
